Cyclone IV Trekking Cargo Bicycle Trailer


  • €599.95
EAN: 7436910514536
SKU: 20042-TR-20
Out of stock.
Worldwide shipping
Dutch design


The Cyclone IV Cargo Bicycle Trailer lets you transport whatever bag, box or container you want. The many lashing points enable you to attach any kind of luggage.

The Cyclone IV trailer is the fourth generation of the multiple award-winning Cyclone bike trailer. The Cyclones have been used all over the world for cycling trips and expeditions. Due to its robustness and very low rolling resistance, the Cyclone IV Cargo is the perfect trailer to move loads with your bike.

When the wheels are inserted in the rear axle bushings, the Cyclone IV can be used as a walking trailer. This way you can easily cover considerable distances, even with fully loaded trailer.

The Cyclone is a two-wheeler so it keeps itself in balance and the behavior of the bike is not affected. You can park your bike with the trailer still attached during a break without risking it to capsize. With the tow bar connecting to the bike's rear hub, your bike's rear is still available for a child carrier or luggage.

At home the Cyclone folds away real small, on the road it sports a capacity of 40 kg. The TIG welded frame bushings guarantee a strong and secure connection of the wheels to the frame, even at high loads and speeds. The wheels are equipped with industrial closed bearings, ensuring minimal rolling resistance and maximum security.

The hitch fits on virtually any bike, whether with dropout or fixed rear axle and is made of stainless steel. It can be ordered separately to make more bikes 'Cyclone-compatible'. The tow bar can be detatched in seconds. This requires only one hand, so the other hand can hold the bike. Feels safe, when your kid is still in the child seat of your bike.

As for all our products, all materials that we use to build a Cyclone are available separately. That means that if you have had a little accident with the trailer, we can fix it for you. If you are on the other side of the world then we can send the necessary parts so you can resume your trip in no time.



Dimensions L x W x H 132 x 65 x 40 cm (36.8 x 26 x 16")
Weight 5250 g /piece
Made in The Netherlands, with one or more Asian components
Sales unit Piece
This product consists of
  • 1 alloy frame
  • 1 tow bar 20" or 26"

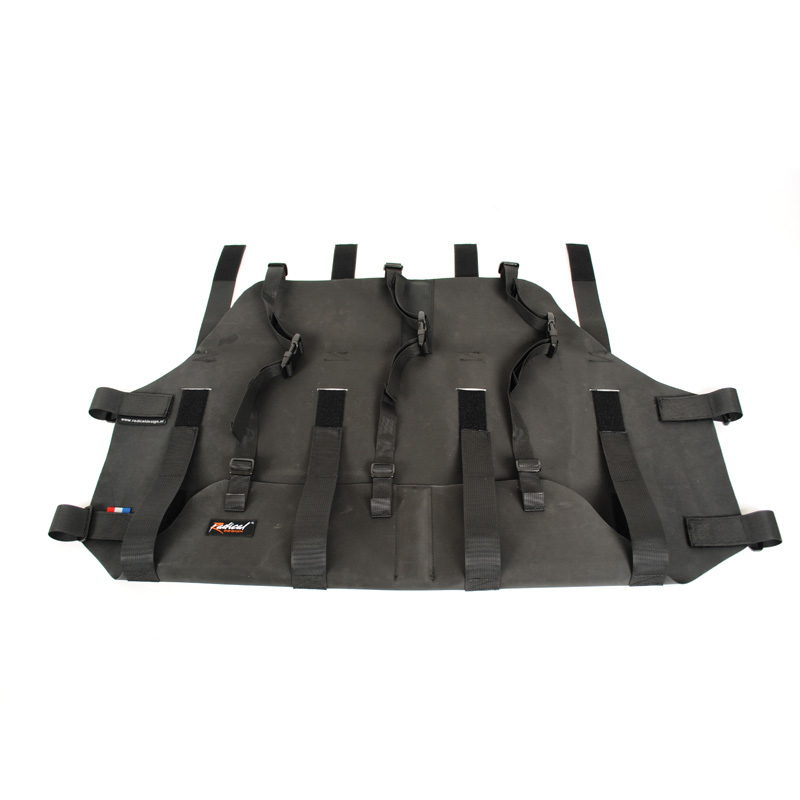

  • 1 Cargo base
  • 2 wheels with pneumatic tires
  • 1 hitch (bike side)
  • 1 hitch (trailer side)
  • 1 manual
  • 1 tow bar attachment bolt M10x30
  • 2 quick-release axles
  • 2 spacers
